Turbine Blades
Blade Inspection (eBloome)
Client Profile
HAL : Premier aerospace public sector company. As a part of Indigenization, Successfully produced 20 equipments in 16 months against contracted 21 months.
Objectives

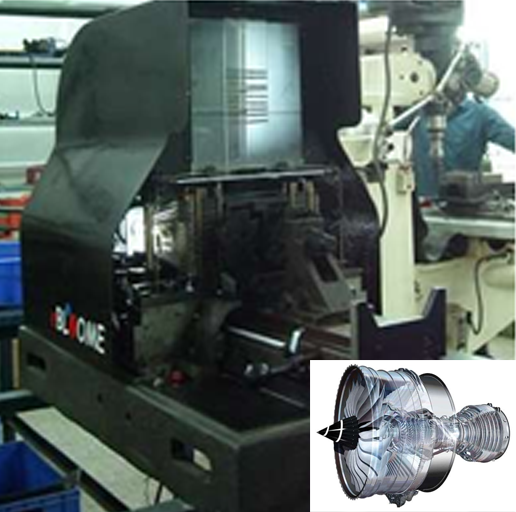

Profile Inspection Machine for Turbine Blade.
Provide a measurement solution to bring accurate and consistent measurement. This will help organizations in positive qualification of components as well as proactive planning to improve manufacturing ability.
eSya solution
eBLOOME is an Opto-mechanical Inspection system, indigenized for aero foil profile measurement, catering extensively to defense & aerospace segments. System will greatly increase the efficiency and speed of the measurement process for profile, thickness, angle and shift of lock axis section. Both final manufactured blades and billets with tolerance up to two millimeters may be checked in the same system.
Highlights
Measurement Method is relative with reference to standardetalons(Masters) .
Blade profile inspection at points with minimum pitch distance up to 5mm.
Images are magnified amounting to 50:1.
Aero-Engine Vibrations
Aerospace Engine Vibration Measurement -eDiva

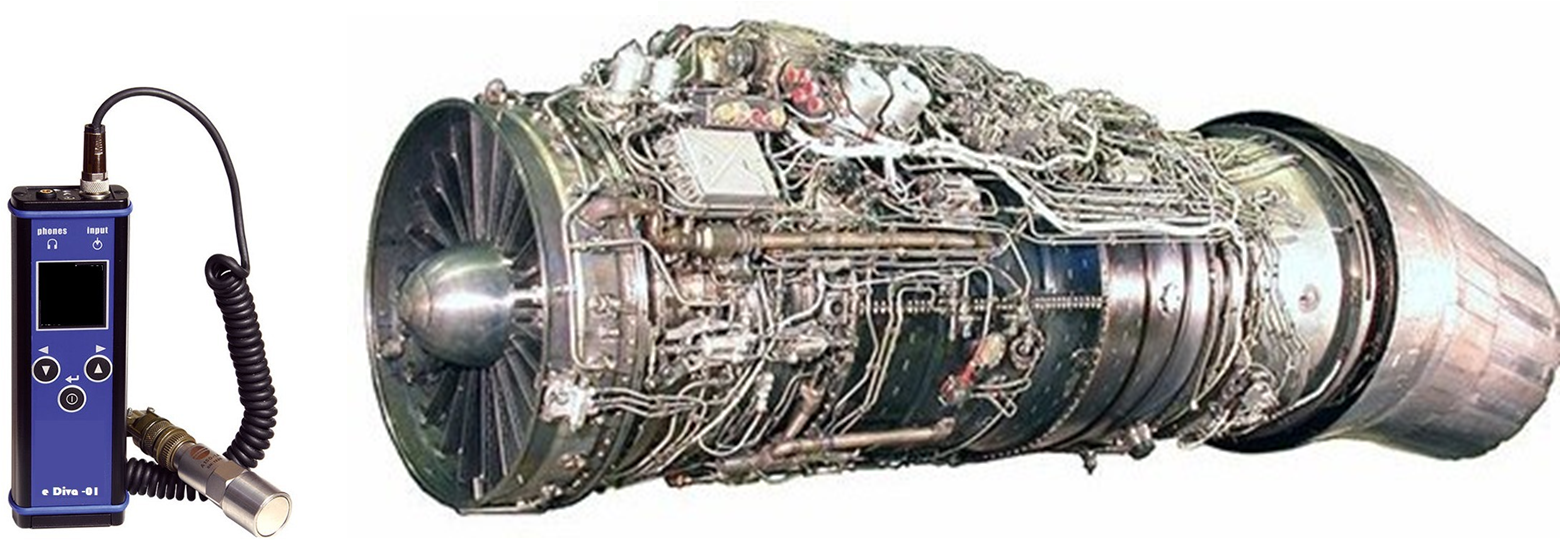

eDIVA Aero-Engine Vibration Analysis portable unit includes a rechargeable battery and charger.
Measurement ranges of the RMS value of vibration acceleration. 0.05 – 1.0 m/secz, 0.5 – 10.0 m/secz
Peak indicator (RMS) 50% and 80% response ( in NF Mode):
Unit is compatible with Industry leading high accuracy/ resolution vibration sensors.
Range of operating frequency in NF mode 10 to 2000Hᶻ
Option for connection of headphone
Actuators/ Cylinders
LCA Electromechanical Actuator…

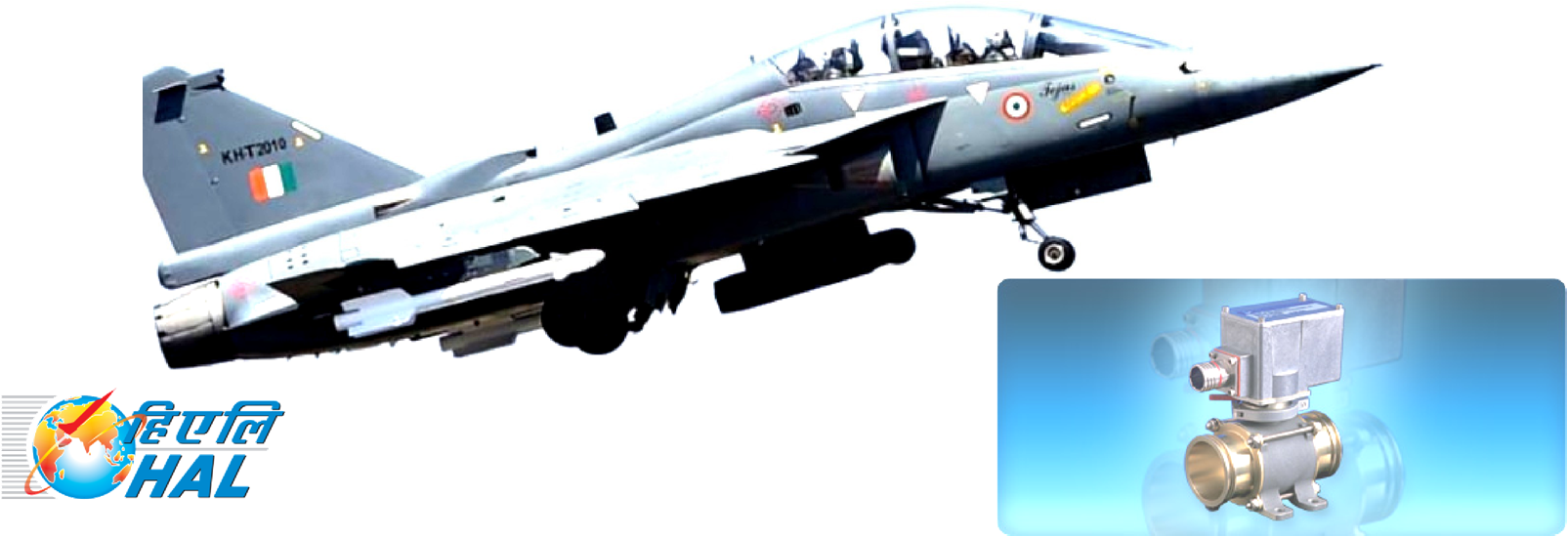

Electromechanical actuator development is a critical and prestigious program under indigenization
eSya designed and developed EMA controls the operation of mechanical bi-directional valve used in fuel transfer and air pressurization sub-system of Tejas
Seven EMAs are required to be installed for various supply/ transfer lines of each LCA
Application study has been conducted in conjunction with HAL team
Shell cover Inspection
Client profile
Ordinance Factories Board: Premier arms & ammunition public sector company.
Solution Highlights
- Mission critical Profile parameters are inspected with high precision vision camera with customized inspection software
- Each shell is marked with unique identification number for traceability. Final segregation based on inspection results
- Data collection & statistical reports for analysis
Space Vehicle CC measurement
Carbon-Carbon Composite Thickness Measurement
