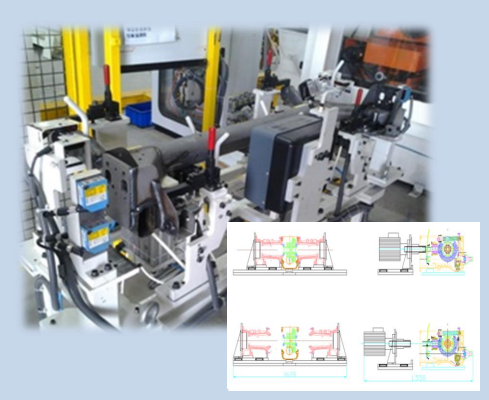

Differential Housing
Differential Housing Rear Axle Shim Selection System
Client Profile
Escorts Tractor, one of the leading heavy Agriculture utility vehicle manufacturer.
Parameters
- Ring gear side axis distance
- Pinion gear side axis distance
- Preload inspection
- calculated shim thickness
Solution Highlight
Complex shim selection automated shim selection with lookup table built in to software
Positive poka-yoke shim selection with cross verification
Data acquisition and transfer using RS 232 and zigbee wireless to centralized server
Custom built measurement software helps in capturing data and display analyzed outputs.
Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.

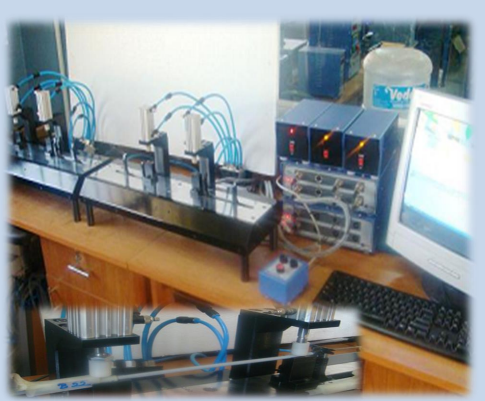

Lumber Cable / Wire Harness
Lumber cable wire harness distances
Client Profile
Federal Mogul, one of the leading heavy commercial vehicle manufacturer.
Parameters
- Lumber cable wire harness distances
Solution Highlight
Full automated solution for gripping wire harness
Measuring different distances from pivot attachments
Rejection segregation & traceability
Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.
