Salient Features:

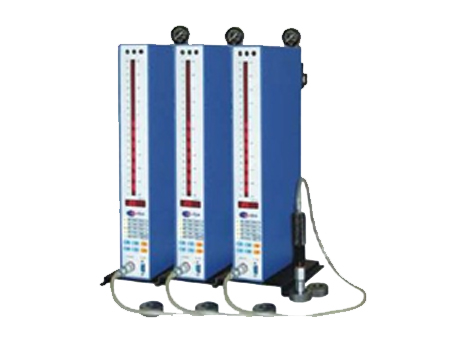

- 3 Mode bars covering legacy air bubble columns with Six Digit Display
- Selectable Ranges / Least Count
- Auto Calibration Facility
- Tolerance Status Indicator Lamps
- StatiC & Dynamic Functions viz., Max, Min, Avg., Taper, Oval. & Radius
- Programmable Absolute Value, USL, Master Values
- RS 232C / Wireless Interface for data Transfer
- Gauge Ware-Out Detection
- Compatible to all types of APG and ARG
- In-built Air Transducer & Unit mounted Filter Regulators
Optional Features:
- Optional 3 Color Columns
- Options for Blinking, Buzzer On/Off& Relay Output
- Optional USB interface
Accessories:
- Base plate for single and up to 3 columns stack, RS232 cabte, External keyboard
Standard Specification:
- Model: eAEC — 01
- Dimension: 80 x 210 x 440 mm Weight: 4kgs (Approx)
- Power Input: 230V AC 50Hz Interface: RS232 Serial Port
