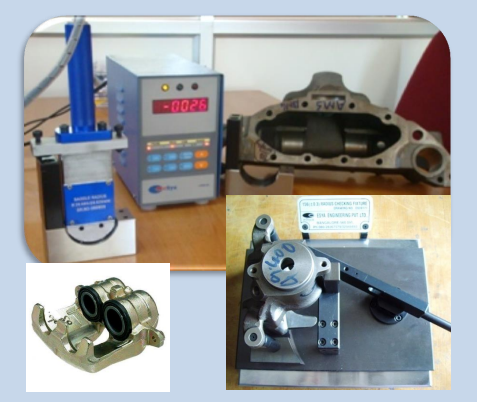

Break housing & Caliper
Internal Radius, Seal Groove Gauge Diameter, Gauge Distance
Client Profile
BMW/Mercedes/ABI-Turnamatics / BorgWarner are the leading passenger & commercial vehicle Turbocharger manufacturer.
Parameters
- Housing Internal Radius
- Seal Groove Gauge Diameter
- Gauge Distance
- Piston Guide Diameter
Solution Highlight
Break Shoe Caliper & Housing all safety critical functional dimensions are measured in process & final inspection
Traceability to corporate ERP system with Laser marking and scanning System
Integrated Data collection, SPC and Management Reporting System

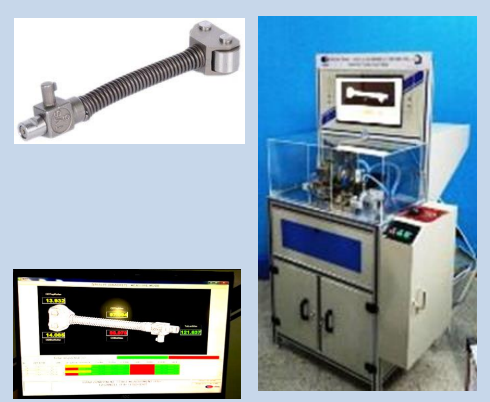

Hand Breaking System
Centre Distance, Bearing Roller Diameter, Holding torque
Client Profile
Allison motors, subsidiary of General Motors, one of the leading Passenger & Commercial vehicle manufacturer.
Parameters
- Locking Bearing to Pin Center Distance
- Bearing Roller Diameter
- Overall Length
- Holding torque measurement for Gauge distance
Solution Highlight
Fully automated in-process measurement with auto loading and segregation
Integrated Vision system for Part Model validity
Traceability to corporate ERP system with Laser marking and scanning System
Special torque & load measurement for know gauge distance
Integrated Data collection, SPC and Management Reporting System

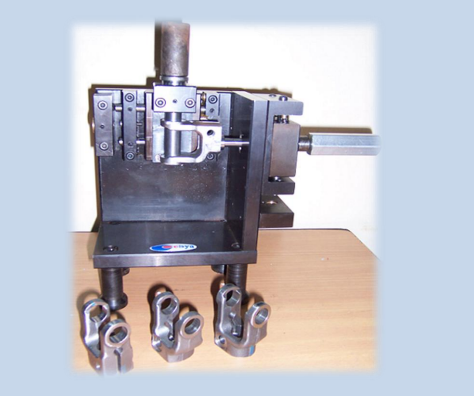

Steering
Guide Diameter, Pin centre distance
Client Profile
Delphi / Nexteer one of the leading Auto component OEM supplier
Parameters
- Guide Diameter two levels
- Pin centre distance
- Squareness
Solution Highlight
Complex & critical center distance dimensions are measured in both axis
High accuracy & user friendly features automate measurements
Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.

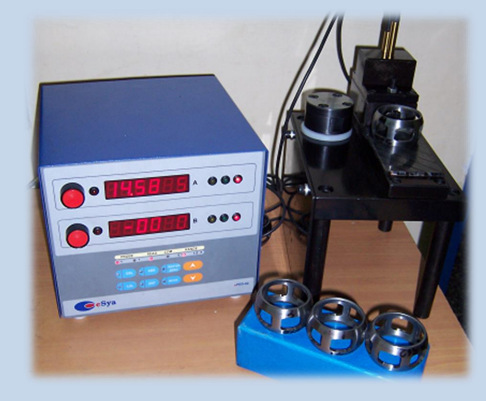

Sphere OD, Sphere ID, Window width, Window Centrality
Client Profile
Delphi / Nexteer one of the leading Auto component OEM supplier
Parameters
- Sphere Outer Diameter
- Sphere Internal Diameter
- Window width
- Window Centrality
- Base Height
Solution Highlight
Positive poka-yoke for rejected component with RED box concept
Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.

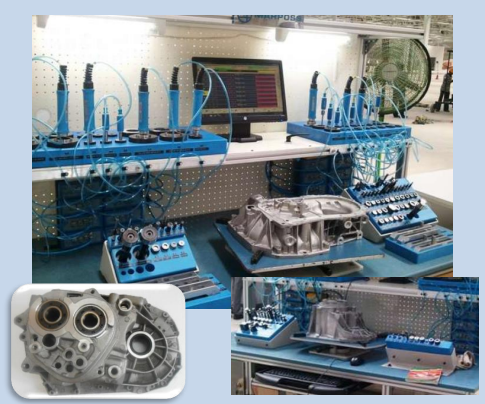

Clutch & Bearing
All Bore Diameter, Bore depth, Pitch Distance, Flatness
Client Profile
Renault one of the leading passenger car manufacturer
Parameters
- All Bore Diameters
- Bore Depths
- Pitch Distances
- Seating Face Flatness
Solution Highlight
Turnkey based complete measurement requirement implementation for process and final inspections
Air, Air-Electronic & attribute gauges supplied for all critical functional parameters
Custom built measurement software helps in capturing data and display analyzed outputs.
Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.

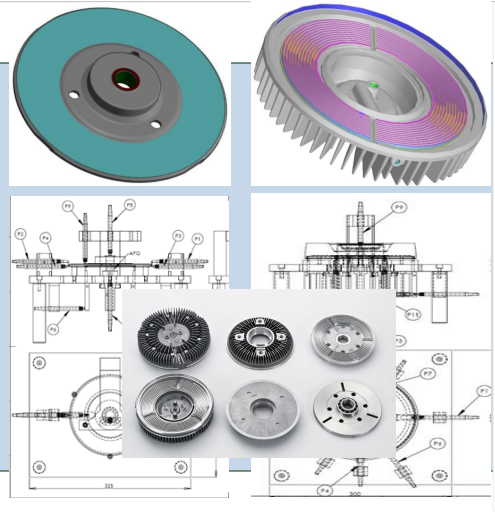

Outer & Step Diameters, Bore Diameter, Bore depth, Flatness
Client Profile
Sargam Diecast, one of the leading supplier of Auto component to leading OEMs.
Parameters
- Outer & Step Diameters
- Bore Diameters
- Bore Depths
- Face Flatness
Solution Highlight
Flexi solution to accommodate range of variable models
Model wise dedicated master with NABL traceability as per specifications
Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.

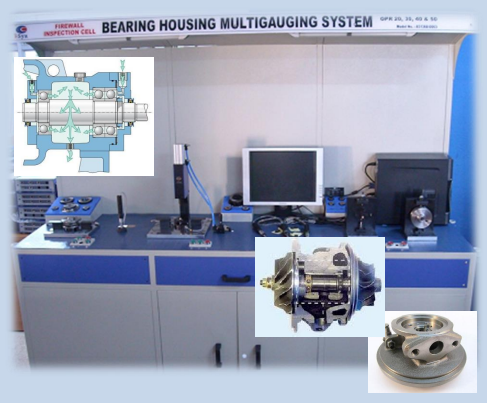

Bearing Housing
Outer and Internal Diameters, respective Concentricity, Ref. face distances
Client Profile
ABI-Turnamatics/Breaks India Ltd are the leading OEM suppliers of auto components.
Parameters
- Outer Diameter
- Internal Diameter
- Reference face Distances
- ID & OD concentricity
Solution Highlight
Bearing Housing all critical functional dimensions are measured in process & final inspection
Traceability to corporate ERP system with Laser marking and scanning System
Integrated Data collection, SPC and Management Reporting System
