Software

All-In-One Vision applications software

MAD vision software has a rich image processing library for metrology application, defect , sorting, matching etc.

Can be interfaced to LabView and C# for easy enhance the connectivity to other applications with a very cost effective way.

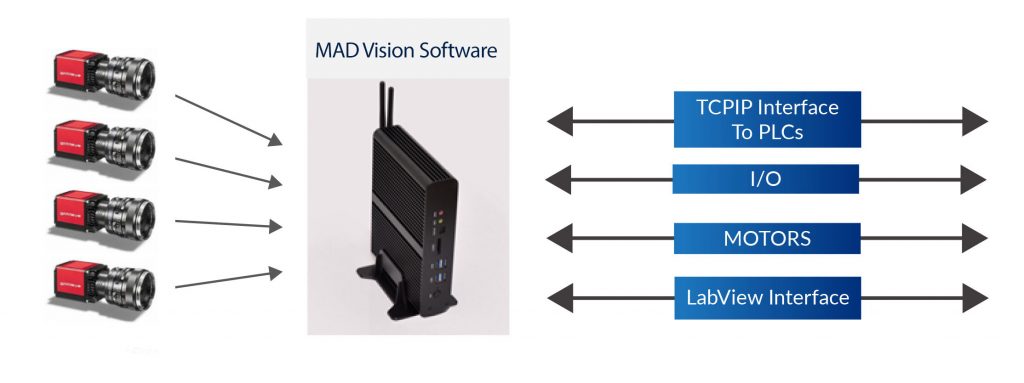

MAD vision software will also provide you the ability to control servo motors and I/O units for complete machine vision applications.

  • Critical dimensions measurement
  • Data collection for SPC analysis report.
  • Integration to costumer production floor.
  • Application tailoring for the customer needs.

The MAD vision software can be used as a platform to construct a wide range of applications, from simple single camera stations to a complete multi-camera station, all in one solution.


MAD Vision Software

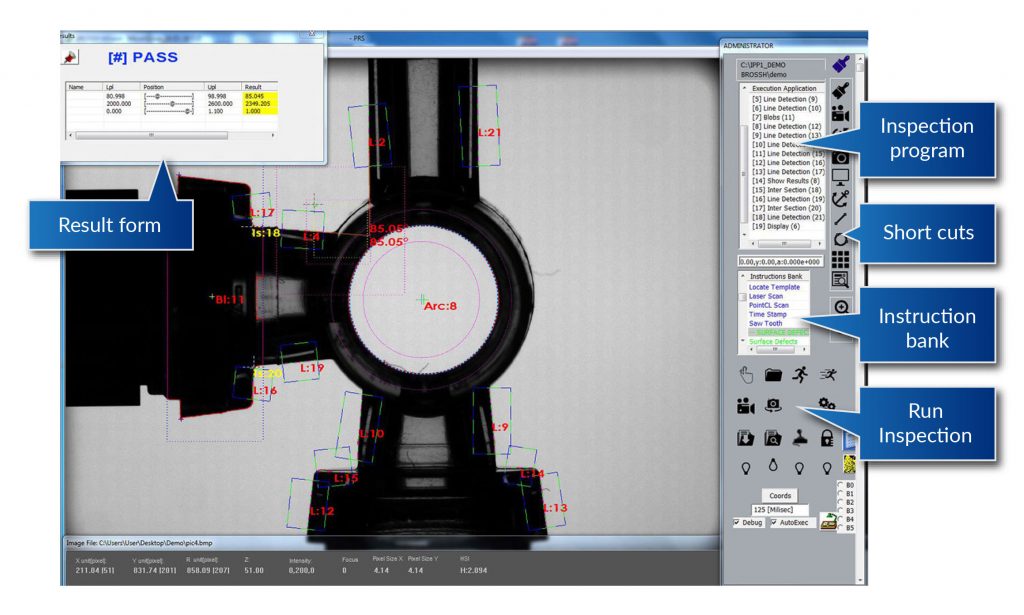

User Interface

vA simple interface is used to construct applications. Our customers say

“it’s the world’s simplest interface for constructing vision applications”


MAD Vision Software

Data sharing and SPC

The MAD vision software uses a smart result interface, enabling you to add result manipulation,

mathematical calculation with a built-in pass/fail mechanism.

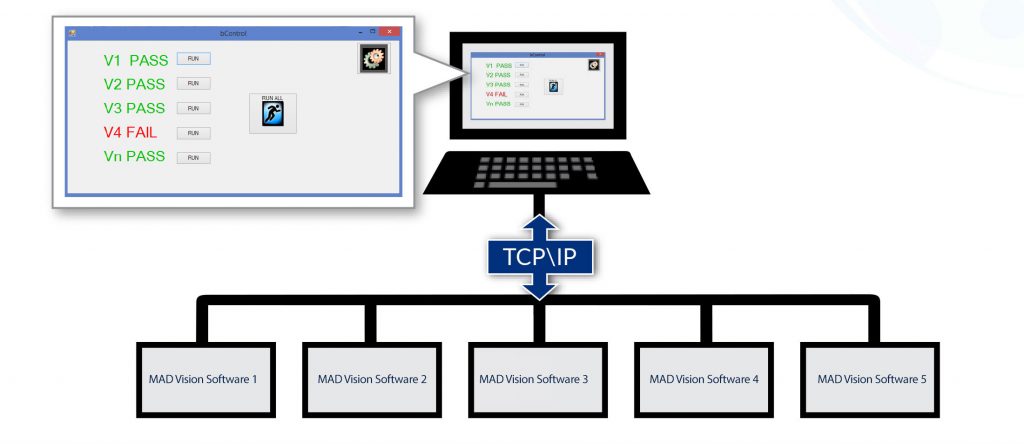

MAD vision software can forward the results according to any and all of the following options:

  • Informative popup dialog on the user screen
  • Excel templates and csv files for SPC analysis
  • PLC or other computer using TCP\IP protocol
  • LabView application
  • .NET – Build and customize you own user interface

Connectivity

  • The MAD vision software is fully integrated with third-party motion controller, I/O unit, 3D sensors and much more!
  • Send and Receive control messages with other devices through serial port and TCP/IP sockets
  • Using TCP\IP, the MAD vision software can be controlled by PLCs

MAD Vision Software

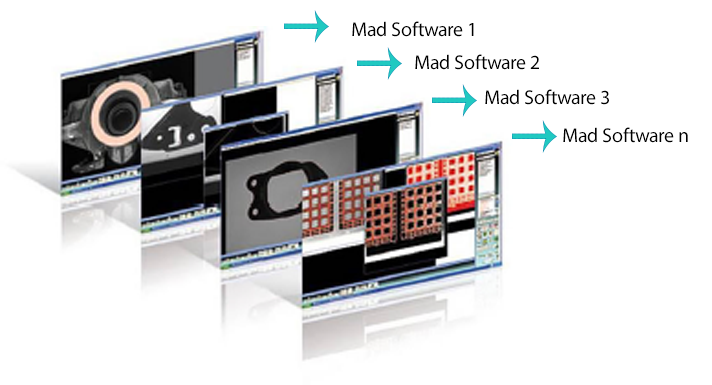

Multi-Tasking opration

MAD Vision Software

Summary

Summary

  • With MAD vision software you don’t need any prior programming knowledge for application setup
  • MAD vision software has an Intuitive user interface
  • MAD vision software has a large and powerful image processing library
  • MAD vision software can process multiple cameras with different vision tasks at the same time
  • MAD vision software has an easy integration with Excel for a SPC analysis
  • MAD vision software can interface remotely to C#, LabView and PLC’s
  • MAD vision software can communicate with motion controllers and I/O units
