Motors
Stator and Rotor Assemblies
Bearing & Rotor Diameters, Run-out, Taper & Ovality
Client Profile
Mahindra Electric Mobility Limited, involved in designing and manufacturing of compact electric vehicles
Parameters
- Stator Rotor Diameters
- Bearing Diameters
- Run out, Taper and Ovality
Shaft & Gears

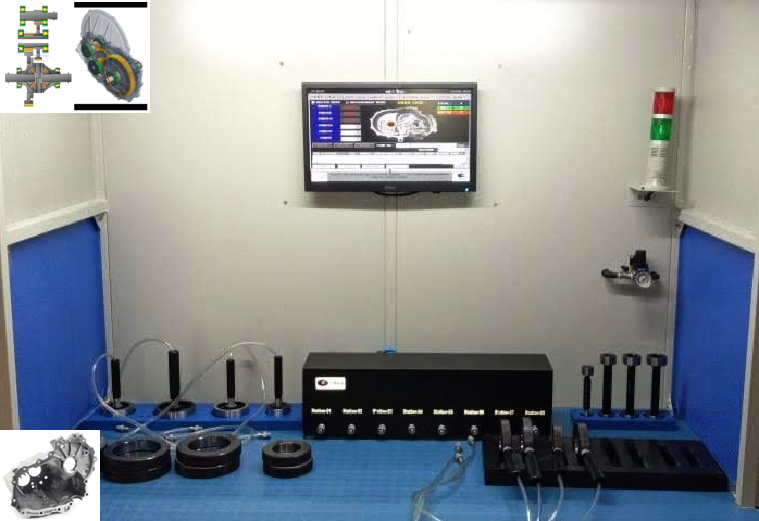

Transmission Housing
Diameters, Counter Bore, Center Distance, Flatness & Parallelism, Shim Thickness
Client Profile
Mahindra Electric Mobility Limited, involved in designing and manufacturing of compact electric vehicles
Parameters
- Counter bore dia and depth
- Bearing Diameters
- Flatness & Parallelism
- Center Distances
- Shim Thickness
Solution Highlights
All critical parametes measured at both in CAP and CASE, automatically records max and min measurement. Also bearing assembly is rotated with known load applied. Shim thickness Calculation done based on the measured data
Measured reliably and accurately within seconds at shop floor condition
Data acquisition and transfer using RS 232 and zigbee wireless to centralized server
Custom built measurement software helps in capturing data and display analyzed outputs.
Data collected is analyzed and reported with various trend charts, which will assist in improving process capabilities.
Battery Modules

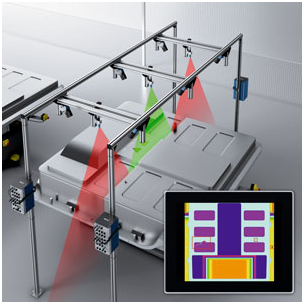

Battery Inspection
Client profile
EV Cells, Electric Vehicle Battery Packs manufacturer.
Parameters
- Pack Dimensions
- Surface defects and contamination
Solution Highlights
Pouch cells, cylindrical cells, and prismatic cells. Since these cells are densely packed in battery assemblies for electric vehicles, the quality and integrity of the battery cells directly affect the road safety of electric vehicles
Innovative solution for the inspection of battery cells to provide comprehensive process and quality control
In addition to dimensional inspection, the cell inspection also detects surface defects and contamination. The system can also reliably check barcodes and data codes.
